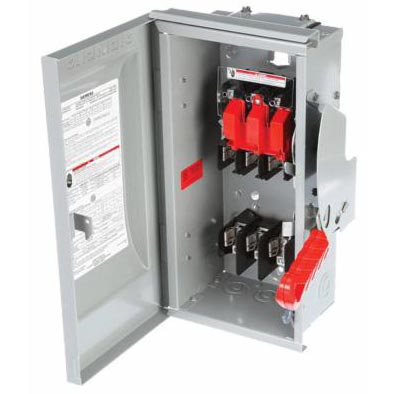

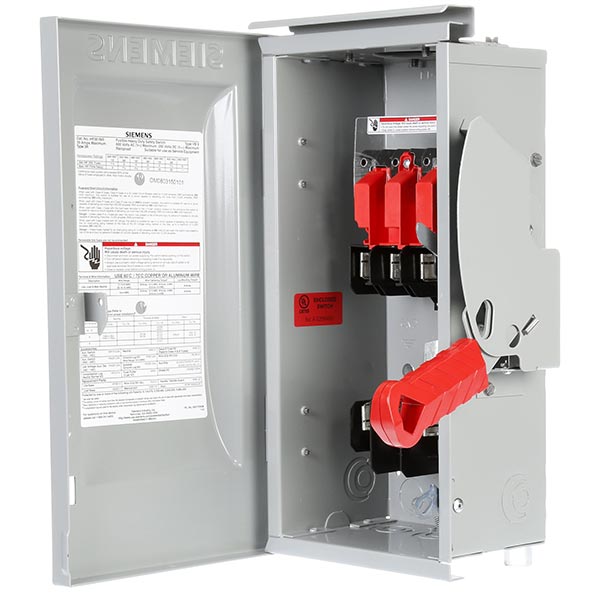

Siemens HF361NR Type VBII Enclosed Fusible Heavy Duty Low Voltage 1-Throw Safety Switch w/Neutral, 600VAC, 30A, 7-1/2hp, TPST Contact, 3 Pole, N3R

by: Siemens

Locke# Q4018 | Mfg# HF361NR | UPC# 783643151666

Siemens HF361NR Type VBII Enclosed Fusible Heavy Duty Low Voltage 1-Throw Safety Switch w/Neutral, 600VAC, 30A, 7-1/2hp, TPST Contact, 3 Pole, N3R

by: Siemens

Locke# Q4018 | Mfg# HF361NR | UPC# 783643151666

For pricing and availability please Sign In

*Item only available: AR, KS, MO, OK, TX, VA

  • Product Featuresarrow_drop_down
    • Quick-make, quick break operating mechanism that ensures positive operation
    • Visible blade, double break switching action
    • Arc chutes dissipate heat and prolong switch life
    • Highly visible red handle grip designed for hook stick operation
    • Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
    • Center punch provided for field drilling to allow on padlocking
    • Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
    • Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
    • Informative door labeling which includes replacement parts list
    • Tangential knockouts through 600 A for easy conduit lineup
    • Side hinged door that opens 180 deg for easier wiring
    • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
    • Spring reinforced fuse clips that assure reliable contact for cool operation
    • Door latch securely holds door closed and allows cover padlocking
    • Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
    • Lugs are field convertible to copper body and to a wide variety of compression connectors
    • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
    • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
    • Drawn cover for increased rigidity and resistance to abuse
    • Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
  • Specificationsarrow_drop_down
    • Amperage Rating: 30 A
    • Application: Outdoor Applications
    • Contact Form: TPST
    • Country of Origin: MX
    • Dimensions: 14.39 in H x 7.91 in W x 10.17 in D
    • Enclosure Type: NEMA 3R
    • Frequency Rating: 60 Hz
    • Horsepower: 7-1/2 hp
    • Insulation Type: Non-Insulated
    • Material: Steel
    • Mfg Standards/Approvals: UL Listed|UL 98
    • Mounting Type: Surface
    • Number of Poles: 3
    • Number of Wires: 4
    • Package Height: 7.6 in
    • Package Length: 18.3 in
    • Package Weight: 12.8 lb
    • Package Width: 11.0 in
    • Phase: 3
    • Series: Type VBII
    • Short Circuit Current Rating: 200 kA
    • Temperature Rating: -29 to 85 deg C
    • Terminal Type: Lug
    • Type: Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw
    • Voltage Rating: 600 VAC
