Product Featuresarrow_drop_down
- Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Coin-proof, defeatable interlock

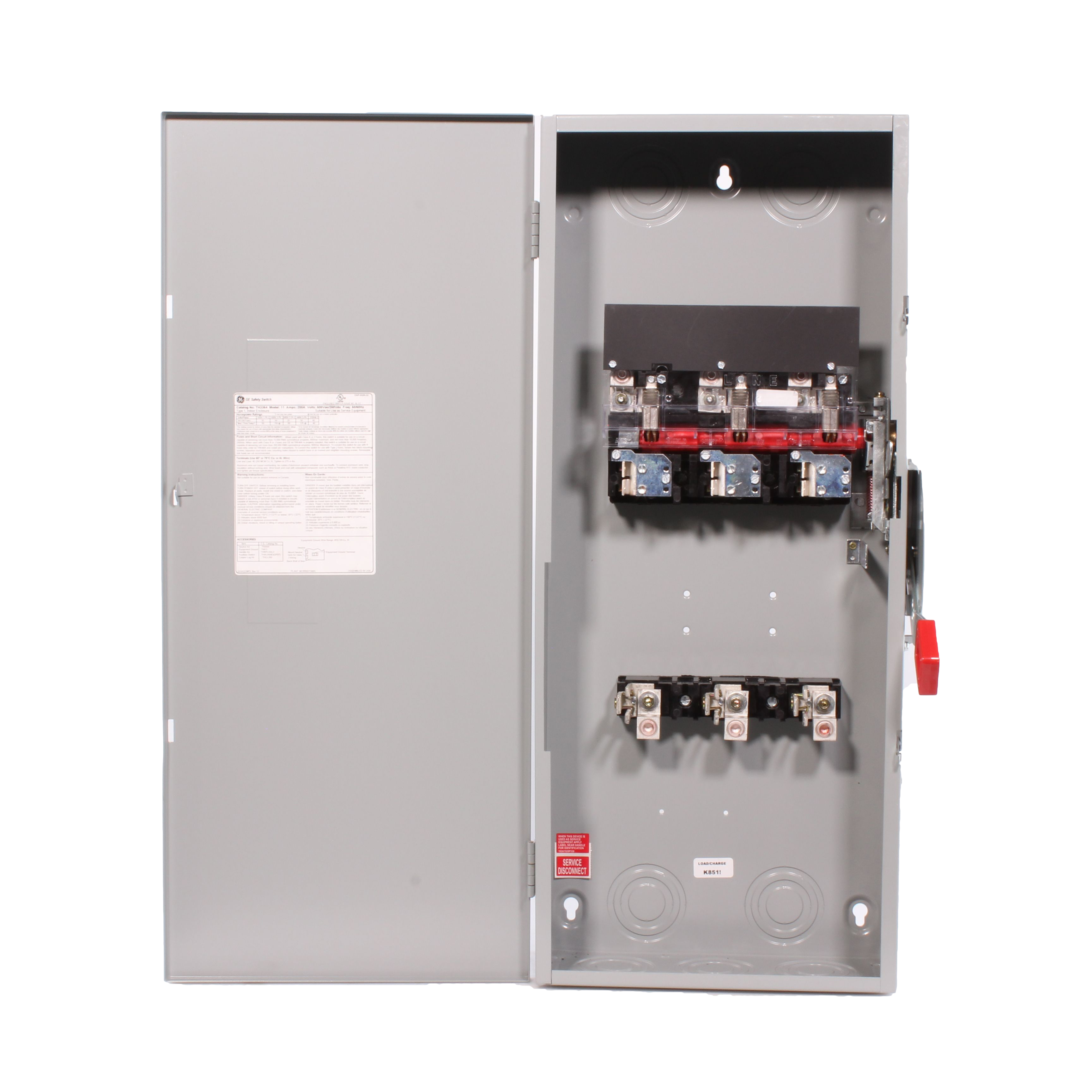

- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses, where applicable
- With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
- UL listed as service entrance equipment when installed in accordance with the national electric code
- Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
-
Specificationsarrow_drop_down
- Type: Fusible Heavy Duty
- Series: TH Series
- Voltage Rating: 600 VAC
- Amperage Rating: 200 A
- Horsepower: 60 hp Standard Fuse/150 hp Time Delay
- Phase: 3
- Frequency Rating: 50/60 Hz
- Number of Poles: 3
- Number of Wires: 3
- Short Circuit Current Rating: 200 kA
- Actuator Type: Handle
- Enclosure Type: NEMA 1
- Mounting Type: Surface
- Temperature Rating: 60/75 deg C
- Dimensions: 31.5 in H x 13.3 in W x 5.1 in D
-
