Copeland 50M56X-843, Integrated Furnace Controls Universal Replacement
by: Copeland Comfort
Locke# K2450 |
Mfg# 50M56X-843 |
UPC# 786710566837

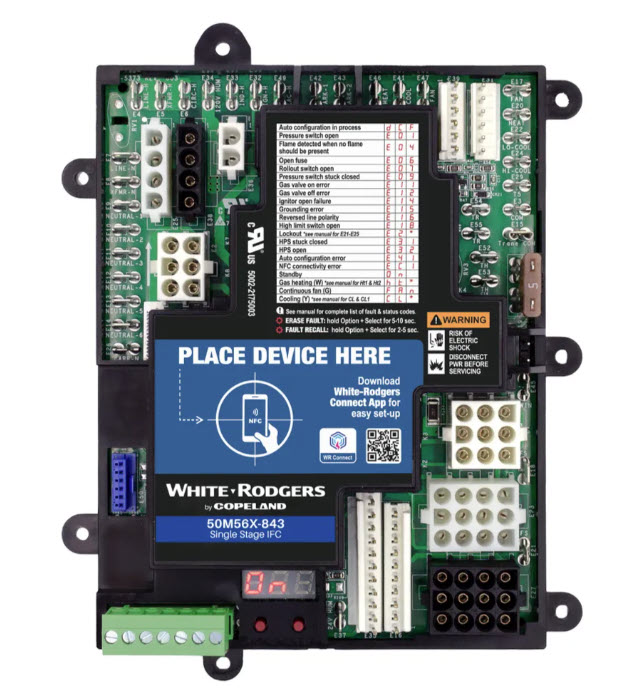

Copeland 50M56X-843, Integrated Furnace Controls Universal Replacement
by: Copeland Comfort
Locke# K2450 |
Mfg# 50M56X-843 |
UPC# 786710566837
For pricing and availability please Sign In
*Item only available: AR, KS, MO, OK, TX, VA
-
- Configurable for either PSC or ECMx blower motors
- Reduce inventory by replacing over 550 part numbers

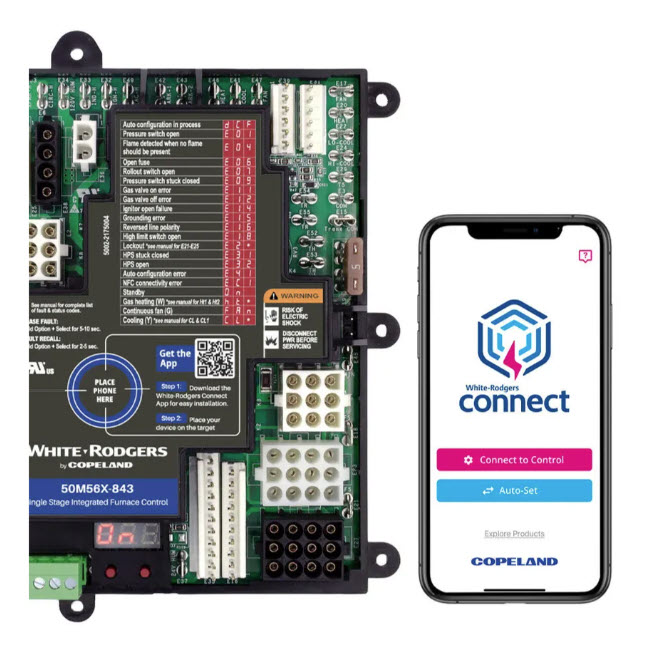

- Quick configuration (without power) and diagnostics with the White-Rodgers Connect App
- OEM harness detection, no additional harnesses required
- 120V Nitride ignitor included
- 7-Segment LED display provides unlimited configuration options
- Rollout accessory is not required
- Thermostat connector block for simple wiring
-
- Ambient Operating Humidity: 5 to 95% RH
- California Prop 65 Cancer or Reproductive Harm: Yes
- California Prop 65 Labeling: On package cancer & reproductive
- Color: Black
- Connection: Thermostat Inputs R,C,W,Y/Y1,Y2,G,DHUM
- Electrical Rating: 25 Vac, 60Hz
- Electrical Rating, Current [A]: (Circulator Relay) Full Load Amps (FLA) @ 120 Vac:(Circulator Relay) 14.5A
- Family: Integrated Furnace Controls - Universal Replacement
- HTS: 9032.89.6025
- Ignition Type: Hot Surface (HSI)
- Ignitor Voltage: 120 Vac
- Inducer Motor/Blower Motor: PSC/PSC or ECMx
- Model Number: 50M56X-843
- Mounting: Flush Mount
- MSDS Required: No
- Operating Temperature Range [°F]: -40 to 175
- Overall Product Dimensions [in]: 8.25 L x 6.50 H x 1.50 D
- Product Depth/Width [in]: 6.5
- Product Family: Integrated Furnace Controls - Universal Replacement
- Product Height [in]: 1.5
- Product Length [in]: 8.25
- Product Weight [lb]: 0.95
- Replacement Type: Universal Replacement
- Stages: Single Stage
- Thermostat Inputs: R,C,W,Y/Y1,Y2,G,DHUM
- UPC-12: 786710566837
- Warranty Period: 1 Year
- Whats In The Box: Ignitor
-
