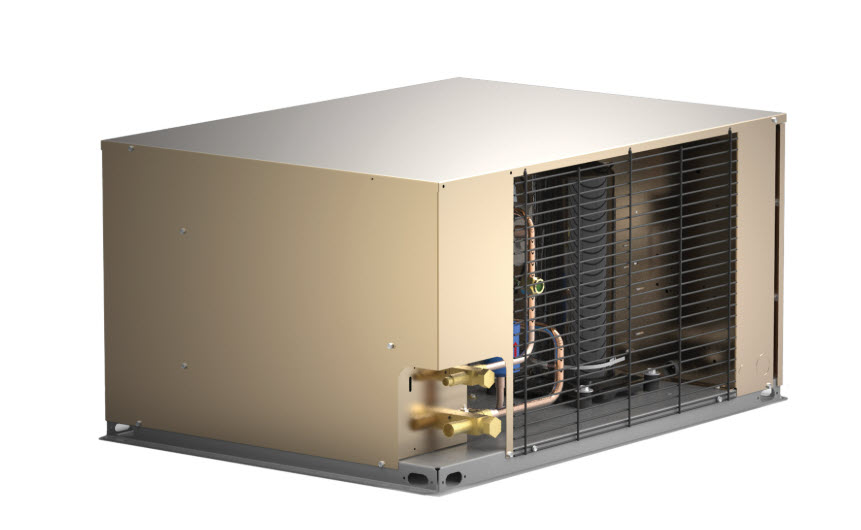

Products | K8215, Heatcraft Refrigeration Products
For pricing and availability please Sign In
*Item only available: AR, KS, MO, OK, TX, VA
-
- ½ to 6 HP air-cooled condensing units, with Copeland Hermetic reciprocating or Scroll compressors, and LG scroll
- We offer units for medium or low temperature applications with either pre-configured option packages or custom

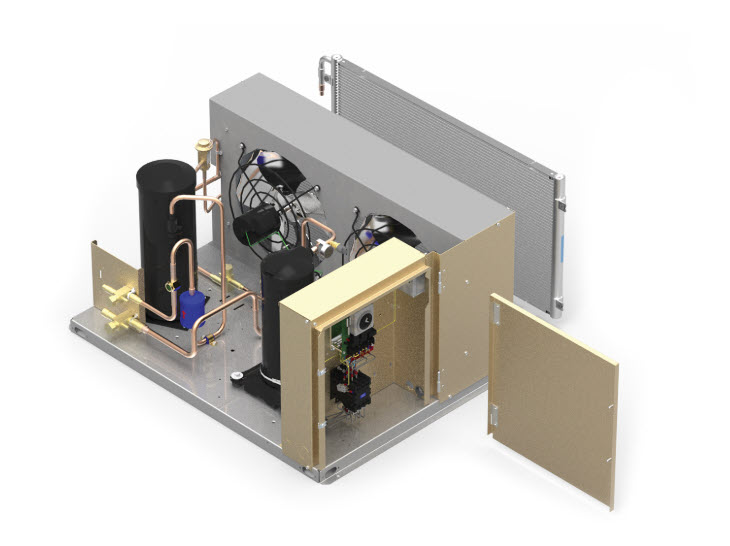

- Piping connections are externally mounted, and cabinets are removable for easy access to service components
- Our designs are energy efficient and approved for use with multiple refrigerants
- Units can be configured to meet minimum AWEF, Title 24 or other regulations
- Meets Minimum AWEF UL Listed US & Canada
- UL Listed US & Canada
-
- Ambient Temperature F: 95° F
- Application: cooler
- Approx Net Weight (lbs): 179
- Cabinet: C1
- Capacity BTUH: 12,200
- Compressor LRA: 40.3
- Compressor Model Number: ZS09KAE-PFV
- Compressor P N: ZS09KAE-PFV
- Compressor RLA: 8.974358974
- Compressor Type: Scroll
- Condenser Coil Type: Microchannel Coil
- Connection Type: Parallel Piped
- Defrost Amps: 15
- Defrost Heater Amps: 15
- Depth In: 28.25
- Evap Fan Amps: 5
- Fan Motor Fla: 0.5
- Fan Motor Qty: 1
- Height (In.): 19.75
- Liquid Od: 0.375
- MCA: 15
- MOPD: 20
- Meets Minimum Awef: TRUE
- Operating Range: Medium Temperature
- Power: 208-230/1/60
- Product Brand: Chandler
- Product Category: Condensing Units and Packaged Systems
- Product Classification: current
- Product Style: 0.5 - 6 HP Horizontal Air Discharge
- Product Type: Air-Cooled Condensing Units
- Rating Point: 95° F Ambient 25° F SST
- Receiver 90 Pc Full Optional Lbs: -
- Receiver 90 Pc Full Standard Lbs: 9
- Refrigerant: R-404A
- Remote Loads 1 Contractors High Amps Electric Defrost Mca: 20
- Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 25
- Sound Data Dba: 61
- Suction Od: 0.625
- Suction Temperature F: 25° F
- Voltage: 208-230/1/60
- Width (In.): 24.625
