Products | L1793, TRUaire™

Products Air Distribution Grilles, Registers & Diffusers Grilles Filter Grilles L1793

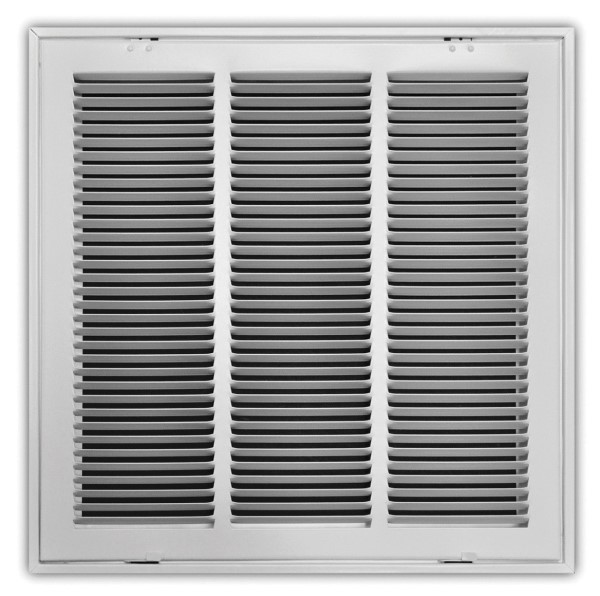

TRUaire 190RF 30X10 1-Way Removable Stamped Face Return Air Filter Grille, 30 x 10 in, 953 cfm, Steel, Pristine White Powder Coated

by: TRUaire™

Locke# L1793 | Mfg# 190RF 30X10 | UPC# 803492209377
L1793

TRUaire 190RF 30X10 1-Way Removable Stamped Face Return Air Filter Grille, 30 x 10 in, 953 cfm, Steel, Pristine White Powder Coated

by: TRUaire™

Locke# L1793 | Mfg# 190RF 30X10 | UPC# 803492209377

For pricing and availability please Sign In

*Item only available: AR, KS, MO, OK, TX, VA

comment Report an issue with product information
  • Product Featuresarrow_drop_down
    • Sturdy steel case is en-framed for a 1 in air filter (not included)
    • Durable pristine white powder coated finish
    • Top SmoothGlide finger latch bottom hinged
    • 1/2 in louver spaced in dual angular formation for greater strength and maximum area
    • Counter-sunk screw holes with 1/4 in hexagon head screws
    • Each grille is individually shrink wrapped
    • Completely removable front panel for easy-to-use access
  • Specificationsarrow_drop_down
    • Application: Ceiling and Sidewall Openings
    • Blade Spacing: 1/2 in
    • Country of Origin: VN
    • Deflection Angle: 55 deg
    • Domestic/Import: Import
    • Effective Area: 1.36 sq-ft
    • Finish: Pristine White Powder Coated
    • Flow Rate: 953 cfm
    • Material: Steel
    • Overall Depth: 1-3/4 in
    • Overall Width: 32-7/8 in
    • Package Height: 12.75 in
    • Package Length: 1.875 in
    • Package Weight: 7.1 lb
    • Package Width: 32.75 in
    • Series: 190RF
    • Size: 30 x 10 in
    • Type: 1-Way Removable Stamped Face
