Products | L2455, White-Rodgers™

Products HVAC Supplies & Accessories Heater Accessories Ignition Controls & Modules L2455

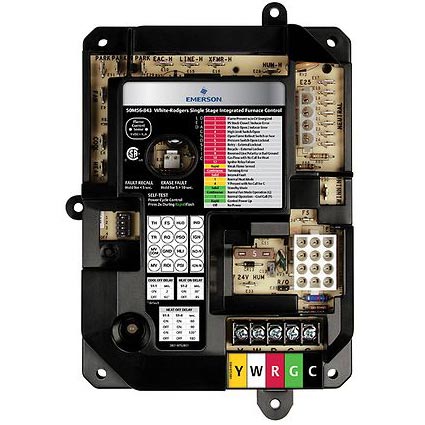

White-Rodgers 50A55-843 Universal Integrated Ignition Control, 25 VAC, 0.45 A, 1/4 in Quick Connect

by: White-Rodgers™

Locke# L2455 | Mfg# 50A55-843 | UPC# 786710100437
L2455

White-Rodgers 50A55-843 Universal Integrated Ignition Control, 25 VAC, 0.45 A, 1/4 in Quick Connect

by: White-Rodgers™

Locke# L2455 | Mfg# 50A55-843 | UPC# 786710100437

For pricing and availability please Sign In

*Item only available: AR, KS, MO, OK, TX, VA

comment Report an issue with product information
  • Product Featuresarrow_drop_down
    • Replaces 50A50 and 50A55 controls consult integrated silicon carbide module
    • Fused to protect low voltage system transformers
    • Includes mounting hole template
    • Adjustable blower relay
    • 1.5 A valve relay
    • 6 A ignitor relay
    • 2.2 FLA to 3.5 LRA inducer relay
    • 14.5 FLA to 25 LRA circulator relay
    • -40 to 175 deg F operating
    • 5 to 93 percent relative humidity
  • Specificationsarrow_drop_down
    • Amperage Rating: 0.45 A
    • Application: Controls Gas Valve, Ignitor, Blower, Inducer, Humidifier and Air Cleaners
    • Country of Origin: CN
    • Depth: 1-1/2 in
    • Domestic/Import: Import
    • Electrical Connections: 1/4 in Quick Connect
    • Gas Type: Liquid Propane/Natural Gas
    • Height: 4 in
    • Igniter Warm-Up Time: 7 s
    • Includes: Flash Code Diagnostics
    • Material: Silicon Carbide
    • Mfg Standards/Approvals: CSA Certified
    • Mounting Type: Surface
    • Type: Universal
    • Voltage Rating: 25 VAC
    • Width: 30 in
  • Resourcesarrow_drop_down
  • Tagsarrow_drop_down
    Ignition Controls & Modules
