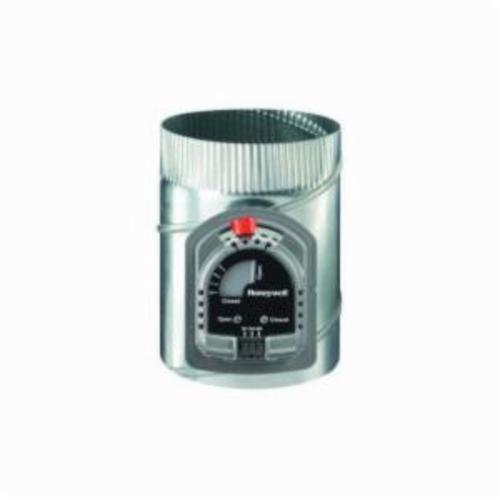

Honeywell TrueZONE ARD6TZ/U Single Blade Automatic Damper, 6 in, Round, 24 VAC, 6 A, 90 deg Rotation
by: Honeywell Home
Locke# L3643 |
Mfg# ARD6TZ/U |
UPC# 085267919333
Honeywell TrueZONE ARD6TZ/U Single Blade Automatic Damper, 6 in, Round, 24 VAC, 6 A, 90 deg Rotation
by: Honeywell Home
Locke# L3643 |
Mfg# ARD6TZ/U |
UPC# 085267919333
For pricing and availability please Sign In
*Item only available: AR, KS, MO, OK, TX, VA
-
- Features galvanized steel with single blade damper, which closes off tightly against gasket for minimal leakage
- Designated as power closed or spring return open damper for use with Honeywell zoning systems
- Can be field-converted when used as an independent zone or for fresh air intake
- Rated to operate up to 1 in WC
- Available in 5 to 10 in, 12, 14, 16 and 18 in Dia
- Adjustable close position range stops
- Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct
- Motor or actuators mounting - side or top
- Fail-safe, normally open operation
- Simple, easy-to wire, two wire installation with a third wire option M4 for LED open only light
- 30 sec power closed/10 sec spring return
-
- Amperage Rating: 6 A
- Country of Origin: MX
- Domestic/Import: Import
- Electrical Connections: M1-Power/M6-Common/M4 Terminal
- Finish: Galvanized
- Material: Steel
- Motor Type: Power Closed, Spring Open
- Rotation Angle: 90 deg
- Series: ARD
- Shape: Round
- Size: 6 in
- Temperature Rating: 40 to 140 deg F
- Timing: 30 sec
- Type: Single Blade
- Voltage Rating: 24 VAC
-
-
