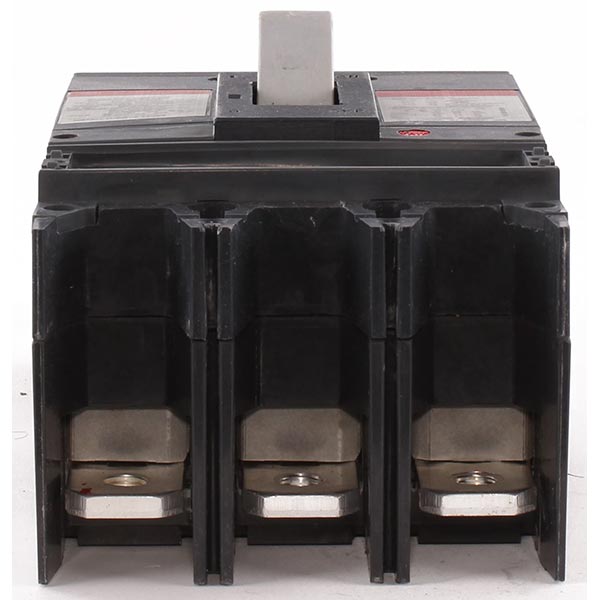

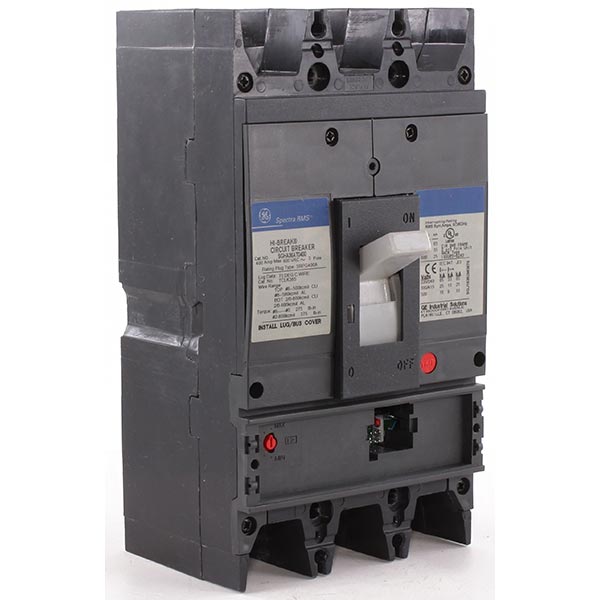

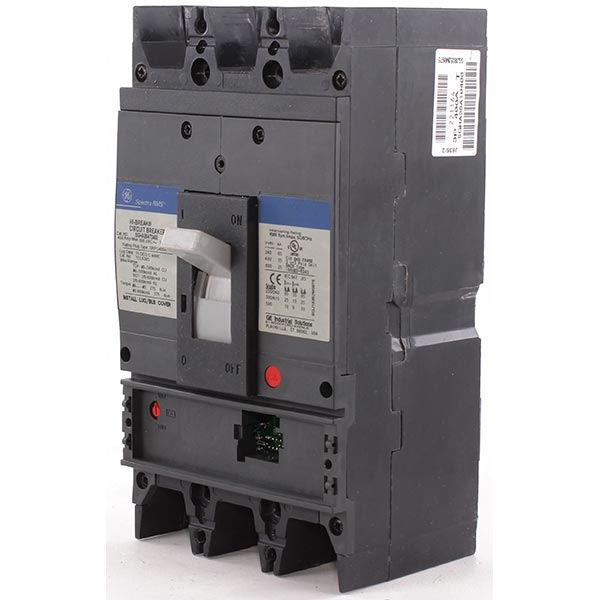

Product Featuresarrow_drop_down
- Snap-in lugs (in E and F frames), lug installation requires no disassembly or removal of cover
- An industry first, common internal accessories, regardless of frame rating, you only have to stock one type of accessory, reduces inventory
- Unique, short time function tracks the adjustable instantaneous setting for greater motor and transformer protection, standard for all frames
- Accessory leads can be either right or left exit and thanks to the side and rear channels, no added space is required for lead exit
- Higher IC ratings, ratings to 100 kA at 480 VAC without fuses and without changing from traditional GE breakers
- Digital rms trip system standard, true rms sensing means accurate response to the high harmonic content current waveforms produced by SCR drives, welders, arc furnaces, computer power supplies and discharge type lighting, all without nuisance tripping
- (2) 2/0 AWG to 500 kcmil, (1) 8 AWG to 600 kcmil copper, (2) 2/0 AWG to 500 kcmil, (1) 6 AWG to 600 kcmil aluminum wire range
- 25 kA at 600 VAC, 35 kA at 277 VAC, 35 kA at 480 VAC, 65 kA at 120 VAC, 65 kA at 120/240 VAC, 65 kA at 240 VAC interrupt rating
- Without lug
-
Specificationsarrow_drop_down
- Actuator Type: Pivot/Toggle Handle
- Amperage Rating: 400 A
- Application: Commercial, Industrial, OEM, Electrical Distribution and Control Applications
- Country of Origin: UU
- Dimensions: 10.09 in H x 5.5 in W x 3.81 in D
- Enclosure Type: NEMA 1/4/12/4X/3R
- Frame: SG600
- Frequency Rating: 50/60 Hz
- Includes: Frame
- Interrupt Rating: 25 kA
- Mfg Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E11592|CSA File No. LR40350|CE Marked|HACR Rated
- Mounting Type: Panel
- Number of Poles: 3
- Package Height: 7.75 in
- Package Length: 11.25 in
- Package Volume: 0.479 CF
- Package Weight: 13.0 lb
- Package Width: 9.5 in
- Phase: 3
- Temperature Rating: 104 deg F
- Trip Type: Electronic LSI/Interchangeable
- Type: Type SGH Standard Continuous Load Current Limiting
- Voltage Rating: 600 VAC
- Wire Size: 2/0 AWG to 500 kcmil, 8 AWG to 600 kcmil, 6 AWG to 600 kcmil
-
