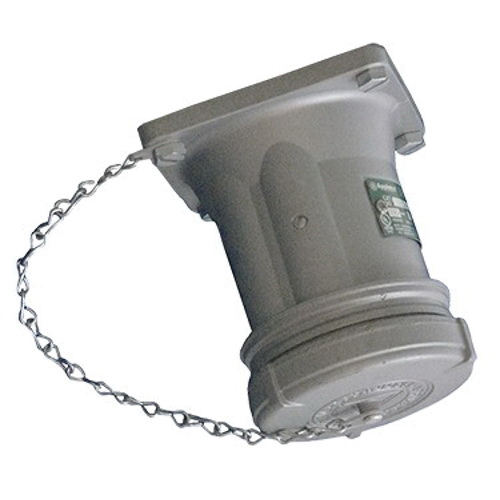

Appleton Powertite ADR1044 3-Phase Grounding Style 1 Pin and Sleeve Receptacle With Spring Door, 600/250 VAC/VDC, 100 A, 4 Poles, 4 Wires

Locke# Q0387 | | Mfg# ADR1044 | UPC# 781381186315
Q0387

Appleton

Appleton Powertite ADR1044 3-Phase Grounding Style 1 Pin and Sleeve Receptacle With Spring Door, 600/250 VAC/VDC, 100 A, 4 Poles, 4 Wires

Locke# Q0387 | Mfg# ADR1044 | UPC# 781381186315

For pricing and availability please Sign In

*Item only available: KS, OK

  • Product Featuresarrow_drop_down
    • Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
    • Locking screw and slot prevents plug cable collar from "backing off"
    • Contacts exert constant pressure along entire contact surface and provide electrical continuity
    • Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
    • Controlled length contacts ensure that ground makes first and breaks last for added safety
  • Specificationsarrow_drop_down
    • Amperage Rating: 100 A
    • Application: ACP1044CD Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Weatherproof Enclosure and Rough Usage Construction
    • Country of Origin: MX
    • Frequency Rating: 50/400 Hz
    • Horsepower: 40 hp
    • Material: Copper Free Aluminum
    • Mfg Standards/Approvals: UL 1682, UL 1686, UL 50E, UL File No. E145916, E145917, CSA C22.2 No. 182.1, CSA File No. 065179, RoHS Compliant
    • NEMA Rating: NEMA 3/3R/4/4X
    • Number of Poles: 4
    • Number of Wires: 4
    • Package Height: 1.4667 IN
    • Package Length: 15.1 IN
    • Package Weight: 4.0 L
    • Package Width: 12.3 IN
    • Series: ADR
    • Temperature Rating: -40 to 225 deg F
    • Terminal Type: Pressure Wire
    • Type: 3-Phase Grounding Style 1
    • Voltage Rating: 600/250 VAC/VDC
