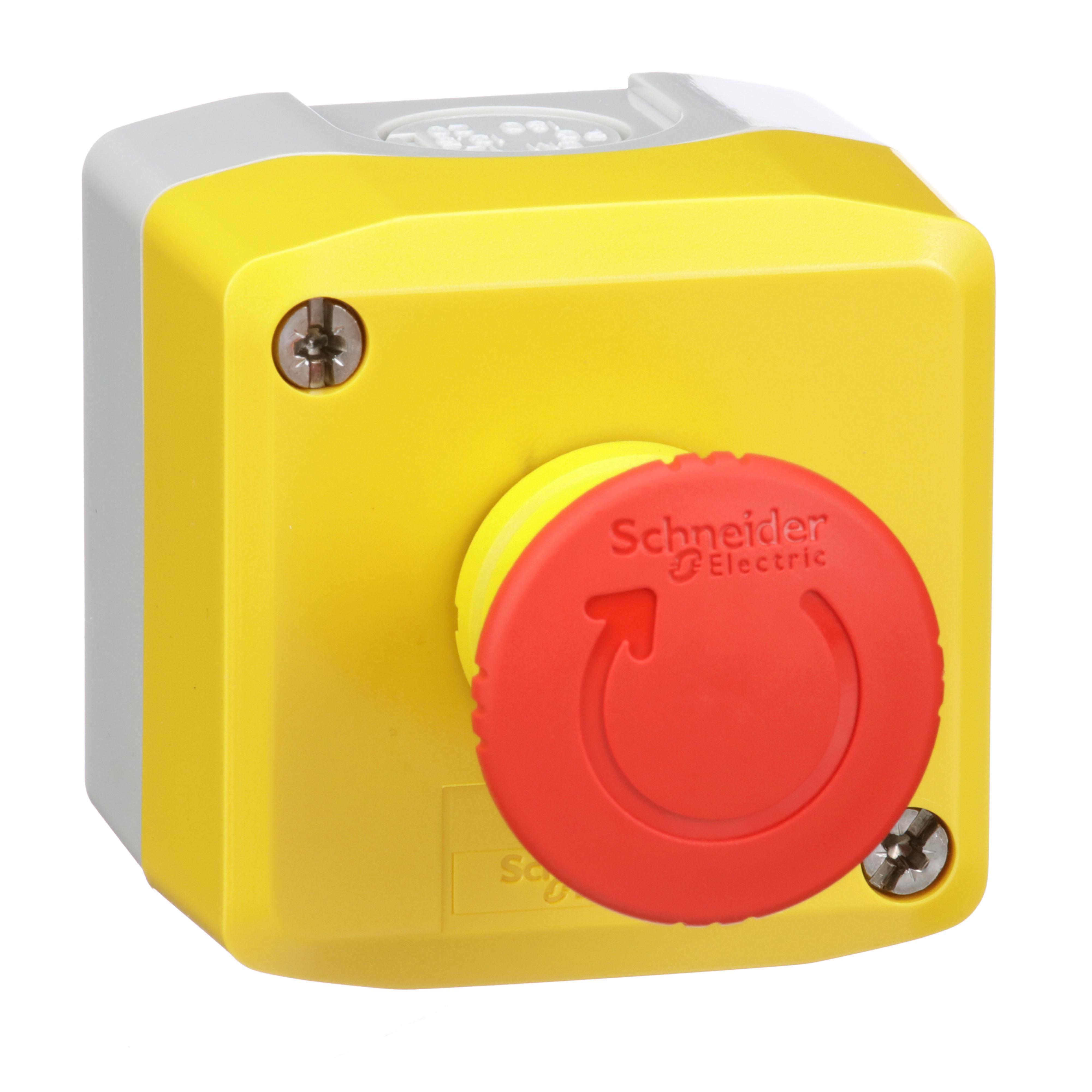

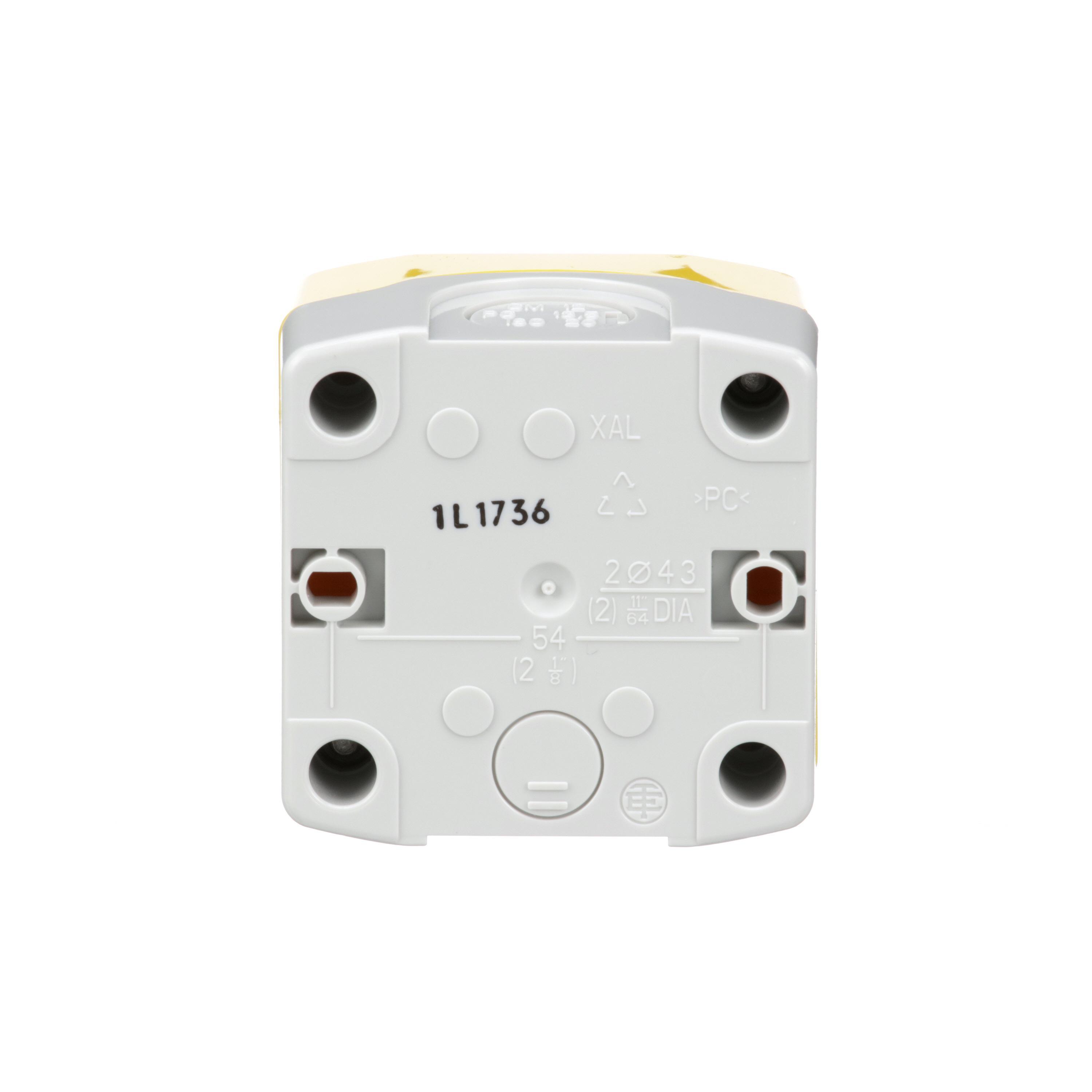

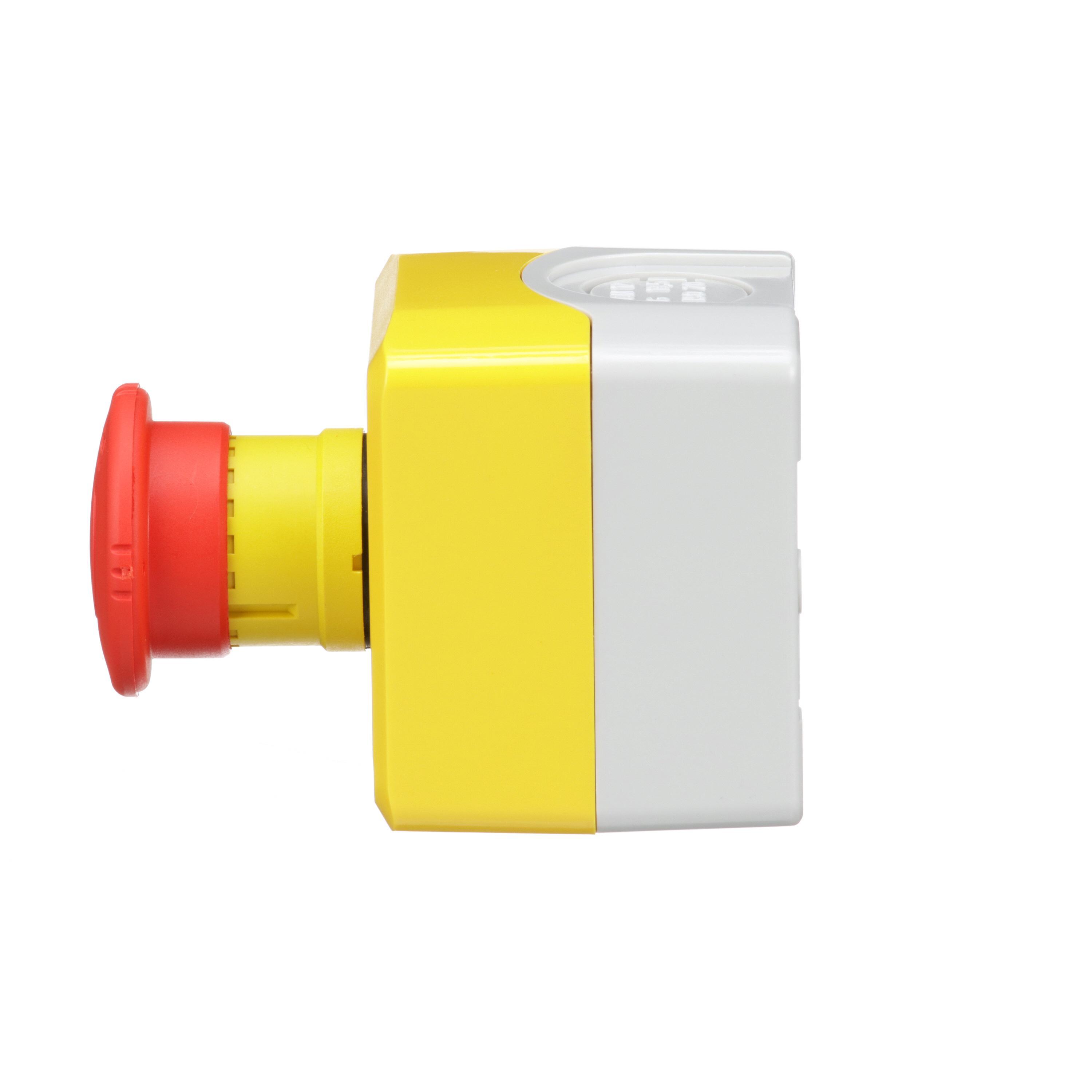

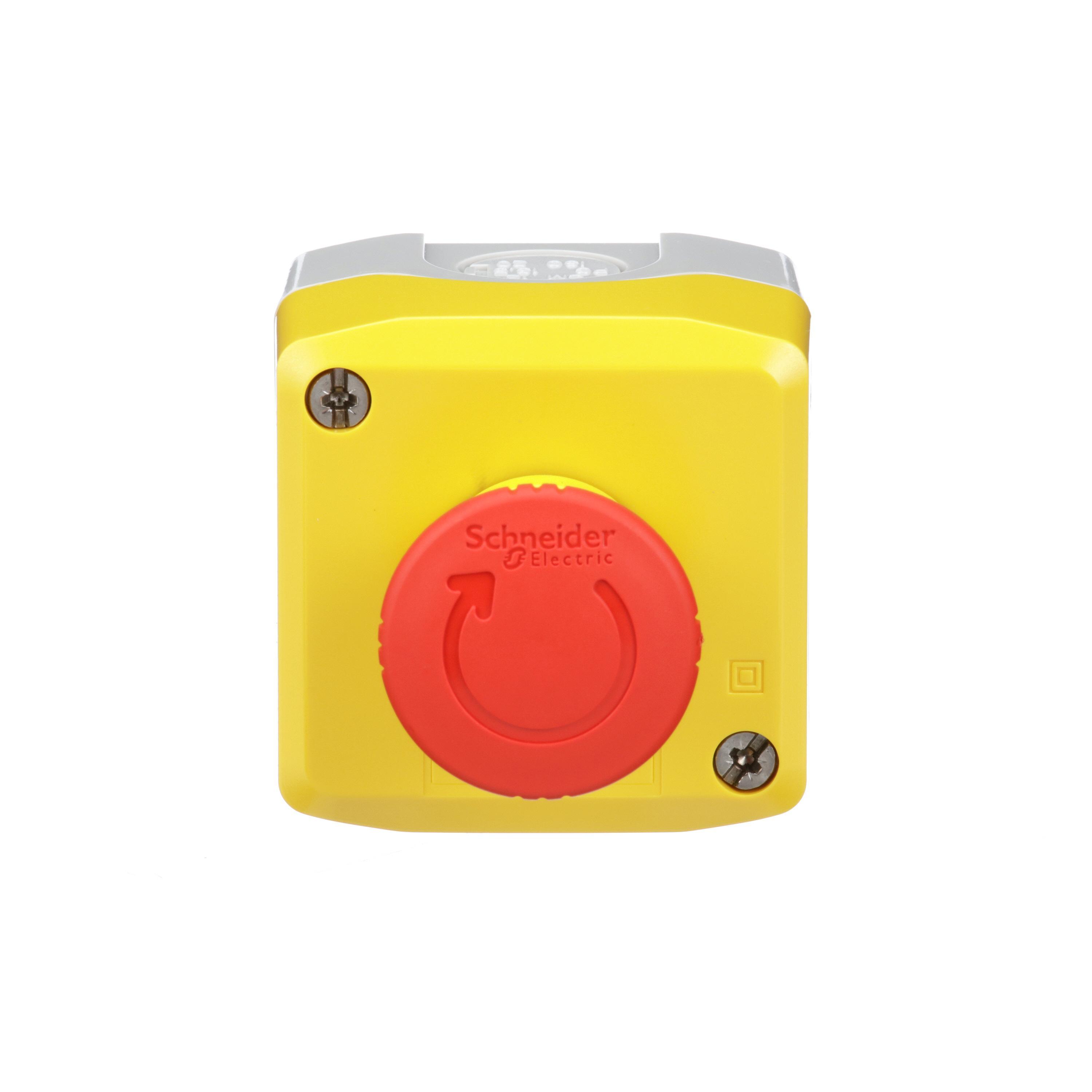

Schneider Electric Harmony™ XALK178H7 Pushbutton Control Station, 600 VAC, 10 A, 1NC Contact, NEMA 13/4X NEMA Rating

by: Allied Electronics

Locke# Q0486 | Mfg# XALK178H7 | UPC# 785901728382

Schneider Electric Harmony™ XALK178H7 Pushbutton Control Station, 600 VAC, 10 A, 1NC Contact, NEMA 13/4X NEMA Rating

by: Allied Electronics

Locke# Q0486 | Mfg# XALK178H7 | UPC# 785901728382

For pricing and availability please Sign In

*Item only available: OK, TX

comment Report an issue with product information
  • Product Featuresarrow_drop_down
    • It operates with turn to release mechanism and uses screw-clam
  • Specificationsarrow_drop_down
    • Series: XALK
    • Voltage Rating: 600 VAC
    • Amperage Rating: 10 A
    • Number of Poles: 1
    • Contact Configuration: 1NC
    • Contact Mode: Maintained
    • Contact Rating: 10 A at 600 VAC/AC 15 to DC 13
    • Operator Type: Mushroom Head
    • Legend: EMERGENCY STOP/EMERGENCY OFF
    • Actuator: Trigger Action/Turn To Release
    • Connection Type Screw Clamp: -25 to 70 deg C
    • Nema Rating: NEMA 13/4X
    • Mounting Type: Wall Operating Temperature
    • Material: Polycarbonate
    • Color: Light Gray/Yellow
    • Dimensions: 16 in L x 12 in W x 12 in H
